Lead (Pb) Shielding
Overview
Lead (Pb) shielding is cost effective and offers excellent gamma attenuation properties. The attenuating properties of Lead are only surpassed by exotic and expensive materials such as Tungsten (W) and depleted Uranium (DU).
Encasing Lead in Steel eliminates its health hazards and weak physical properties, while retaining its attenuation performance and cost effectiveness. The high temperature resistance and all steel exterior make it ideal for permanent shielding applications.

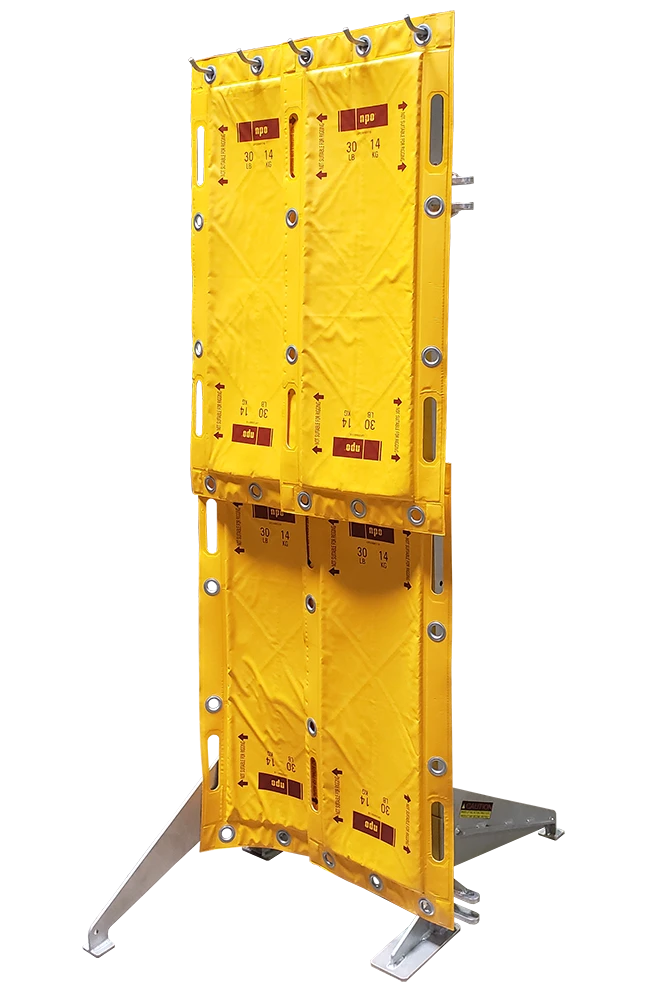

Lead wool blankets are the industry standard radiation shielding product for industrial applications. They are typically used to create a barrier between a radiological source and the rad worker. Lead blankets are often hung by S-hooks on scaffolding or cables to create a shield wall. They may also be draped over pipes / valves / heat exchangers or placed on the floor to shield sources from below.
Types of Shielding
Lead (Pb) Shielding Applications
Oconee Heat Exchanger Skid Shielding
BEFORE AFTER Oconee Nuclear Station contacted NPO to develop a permanent shielding solution for the Supplemental Spent Fuel Cooling Heat Exchanger. The heat exchanger is located inside the truck...
Heat Exchanger Shielding – Permanent Installation
As part of a long-term dose reduction plan, Ameren Callaway sought to install permanent shielding around one of their regen heat exchangers. The intention was to replace the dozens of...
Permanent Pipe Shielding for Davis-Besse
NPO was brought on to provide shielding for Mechanical Penetrations Room No. 1 at Davis-Besse. This room featured a variety of pipe runs with many valves, bends, and reductions...
NPO Engineering Services
NPO offers a number of engineering services to validate the integrity and performance of our shielding. We are the industry experts when it comes to aiding nuclear power plants...
Shielded Filter Casks
NPO worked closely with AVANTech in designing a set of three shielded casks that reduced dose from 26,000-30,000 mRem/hr (260,000-300,000 μSv/hr) to less than 60 mRem/hr (600 μSv/hr) on...
Reactor Head Flange Shielding
TVA Sequoyah needed a way to shield the surrounding area of their reactor head while inspection work was being done. To avoid setting up scaffolding or stand alone lead...
